Easy Installation
The device is pre-configured and works practically from the box. Configuring Gateway will take less than 2 minutes! You can do it with a smartphone or a computer.
Shiva IoT Gateway
Shiva IoT Gateway automatically transfers data from Shiva IoT Bluetooth Low Energy to Shiva IoT Cloud or any other IoT platform. Gateways are used to build remote monitoring systems and work with all types of Shiva IoT sensors.
- Shiva IoT Gateway is equipped with built in memory which buffers the sensor data. The device can be setup in minutes with a free mobile application.
- Shiva IoT Gateway stores 1,00,000 delimiters in its memory. If the connection to Shiva Cloud is lost, it will send the delimiters right after re-establishing it.
- Shiva IoT Gateway communicates with sensors wirelessly over Bluetooth Low Energy. The maximum distance between Gateway and Sensor is 100 m in the open space and 20 – 30 m in the buildings.
- Shiva IoT Gateway can be integrated with any cloud platform or software that supports HTTP protocol (REST architecture).
- Configuration of Shiva IoT Gateway can be done with a mobile application over Bluetooth Low Energy.
- Can be powered up with PoE – Power over Ethernet (802.3 af). Thanks to Ethernet (PoE) power supply, you don’t have to worry about additional cables!
IoT Gateway Features
Advanced IoT Gateway solutions with easy installation, scalability, and enterprise-grade security.
OEM Solutions
Customize logo, Enclosure, Packaging and Connectivity options. So you can focus more on generating core business value for your customers.
Up to 128 sensors
One gateway supports up to 128 sensors. If you need more, simply add another gateway.
Edge Gateway

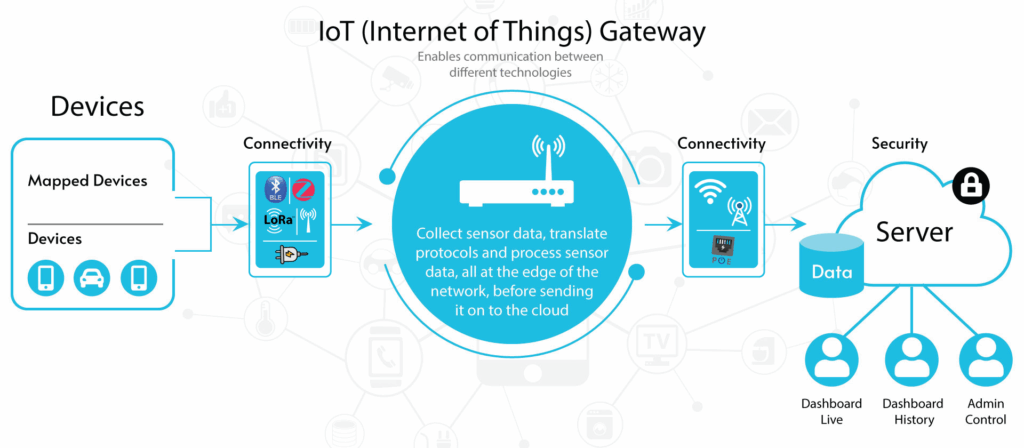

Shiva IoT Gateway collects data from your sensors and sends it to Shiva IoT Cloud or any other IoT platform.
Gateway integration
Shiva IoT Gateway can be integrated with any software which supports REST.
Security
Wireless transmission between sensors and Shiva IoT Gateway can be encrypted (AES128). Only authorized devices can read the sensors' measurements.
Easy Set Up
Shiva IoT Gateway set up is quick and easy. It does not require the installation of any driver or software and can be powered by PoE (802.3af). That ensures the workability in just a few minutes after starting the device. Configuration can be done using a mobile application, so you don't need any cable or a computer.
Gateway Integration
Additionally, Shiva IoT Gateway can be integrated with any software that is compatible with HTTP protocol (REST architecture). For instance, the device can cooperate with ERP and SCADA software or with building automation system. If you would like to have access to Gateway’s libraries, feel free to contact us.
Local Mode
Shiva IoT Gateway can also work in local mode. Thanks to its built in software- you can check the current delimiters from all sensors within its range without use of Shiva IoT Cloud. All you have to do is connect the device to your local network with Ethernet cable. In local mode you can check the current and historical measurements (table/chart) and export the data in a form of CSV report.
Wireless Communications
Bluetooth Low Energy (BLE)
Encryption: AES128
Range: up to 100 m (LOS)
Transmission frequency: 1 s
LAN
Standard: IEEE 802.3, IEEE 802.3u
Ethernet interface: RJ45 socket, support for PoE 802.3af (802.3at Type 1)
Working Conditions
Working conditions: -40°C to 100°C
Uses of Indoor and Outdoor both
Power
Power: Mini USB or PoE
Power over Ethernet (PoE) 802.3af (802.3at Type 1)
Dimensions (mm)
122 x 125 x 75
122 x 155 x 75 (with cable gland)
